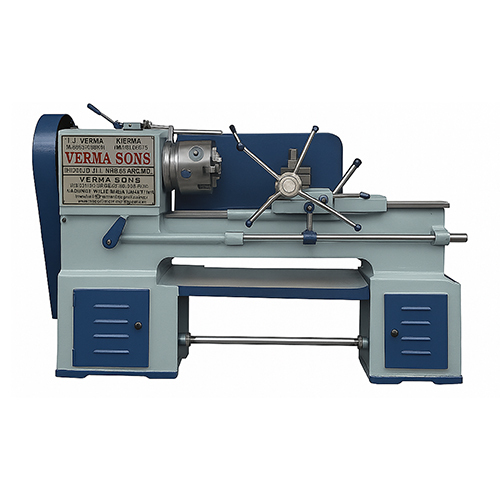

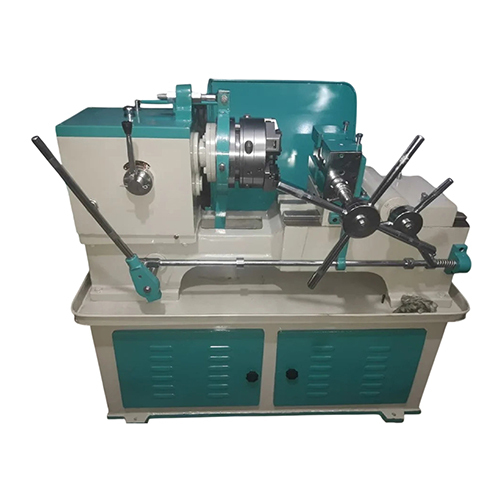

Industrial Bolt And Pipe Threading Machine

Industrial Bolt And Pipe Threading Machine Specification

General Use
Industrial

Material
Stainless Steel Alloy

Automatic
Yes

Control System
Frequency Speed Control

Surface Treatment
Polishing

Feature
High Efficiency

Warranty
1 Year

Industrial Bolt And Pipe Threading Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
7-10 Days

Main Domestic Market
All India

About Industrial Bolt And Pipe Threading Machine

We manufacture a diverse range of Bolt Threading Die-Head that is manufactured using high quality raw material under the guidance of experts. This threading die head is available in assortment of types with us such as pipe threading die head, bar threading die head, bolt threading die head and rebar threading die head. Our range is highly demanded in the market due to its superior functioning and longer operational life. These are available at market leading prices.

Capacity : " to 1", , to 1", " to 2." & 1" to 4" die head

Features:

The Spindle Bore 40mm Fitted with Taper Bearing 32212 & 32211
The Machine Has Two Speeds 60 & 90 RPM
All Gears are Tempered (Oil Seals 42-12-65)
Motor Pulley 12" Diameter, V-belt Drive Vice Fitted with Jaw
Bolt / Pipe Threading machine
Capacity 0.25-1
6MM-25MM

Length of Bed	44"
Width of Bed	11"
Height of Bed	11"
Length of Slide	44"
Width of Slide	11"
Height of Slide	3"
Length of Head	141/2"
Width of Head	12"
Height of Head	12"
Threading Length	10"
Motor	02 HP 1440 RPM
Overall dimension of the machine (LxBxH)	52x24x51
Linco/ Tangentail chasers suitable to the machine	3x 1.3 x64
