Linco Tangential Chaser

2500.0 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Linco Tangential Chaser Price And Quantity

Minimum Order Quantity 2 Piece
Price 2500.0 INR/Piece

Product Description

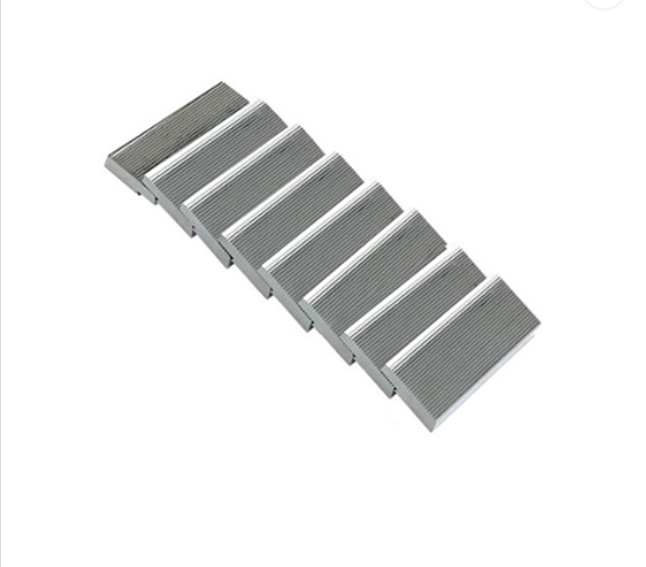

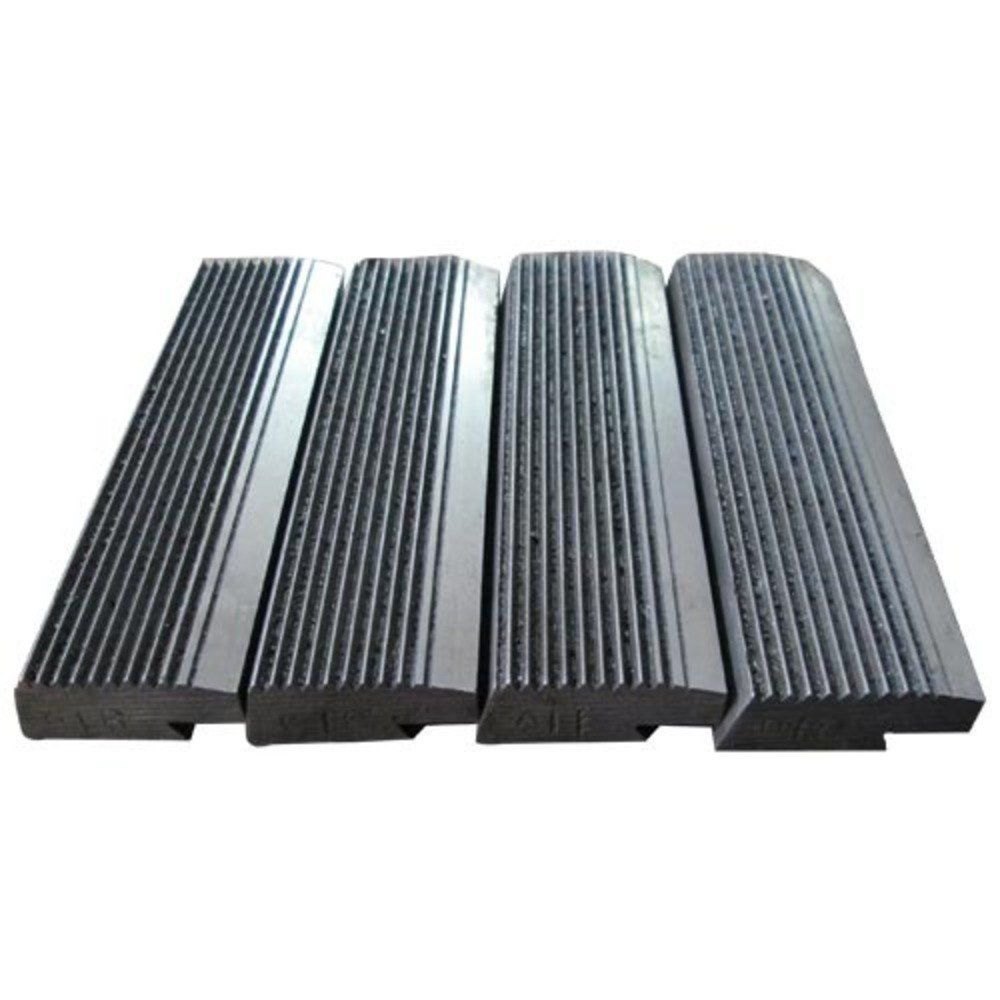

We offer a wide collection of Linco Type Bolt such as thread cutting chaser, pipe threading chaser, bolt threading chaser and rod threading chaser. We stand amid the well known steel tangential chasers suppliers in India. We are specialized tangential chaser manufacturer. This Threading Tangential Chaser is manufactured from metallurgical standard proven imported high speed steel. These Tangential Chasers are designed as per international threading standard, which assist us in manufacturing natural and fine threads. These Landis tangential chasers are available in various lengths ranging from 1" to 6"depending on the size of the die head. BSP, BSPT, NPT, UNF, UNC, BSW threads that can be excellently and easily be cut on this tangential chaser.

Our Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipments, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.

Die-Head Size	Holder Set/Sets (Provided)	Chaser Section
1/4" to 1"	1/4" to 1"	3" x 1.3/64 (Set of 4 Pcs)
3/8" to 1. 1/2"	3/8" to 1. 1/2"	4" x 1.3/64 (Set of 4 Pcs)
1/2" to 2.1/2"	1/2" to 1. 1/2" & 1.5/8 to 2.1/2"	4" x 1.1/4" (Set of 4 Pcs)
1" to 4"	1" to 2" 2.1/2" to 4"	4" x 1.1/4" (Set of 4 Pcs) 5" x 2.1/4" (Set of 4 Pcs)
2.1/2" to 6"	2.1/2" to 3" 3.1/2" to 4" 4.1/2" to 6"	5" x 2.1/4" (Set of 6 Pcs)
4" to 8"	4" to 5.1/2" 5.1/2" to 8"	5" x 2.1/4" (Set of 6 Pcs)
